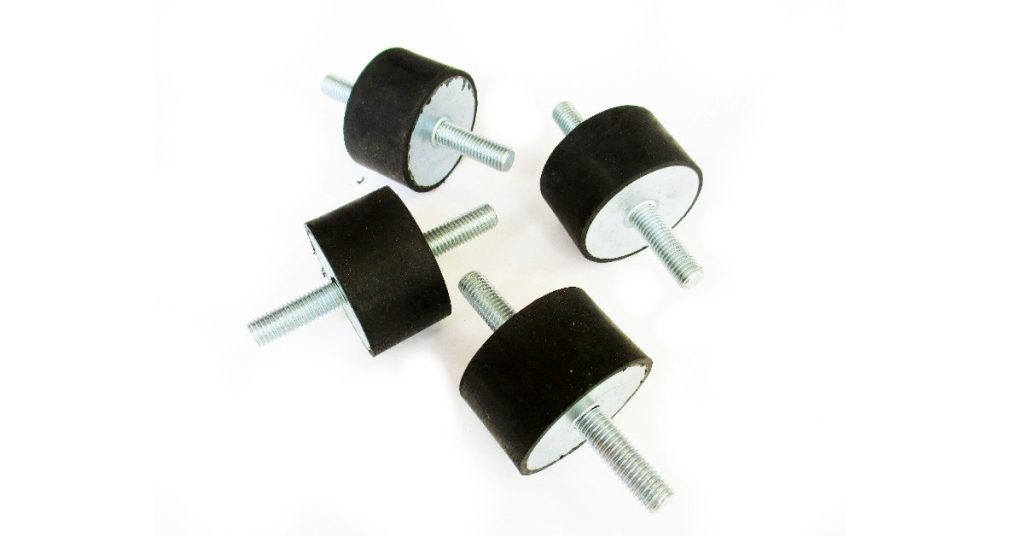

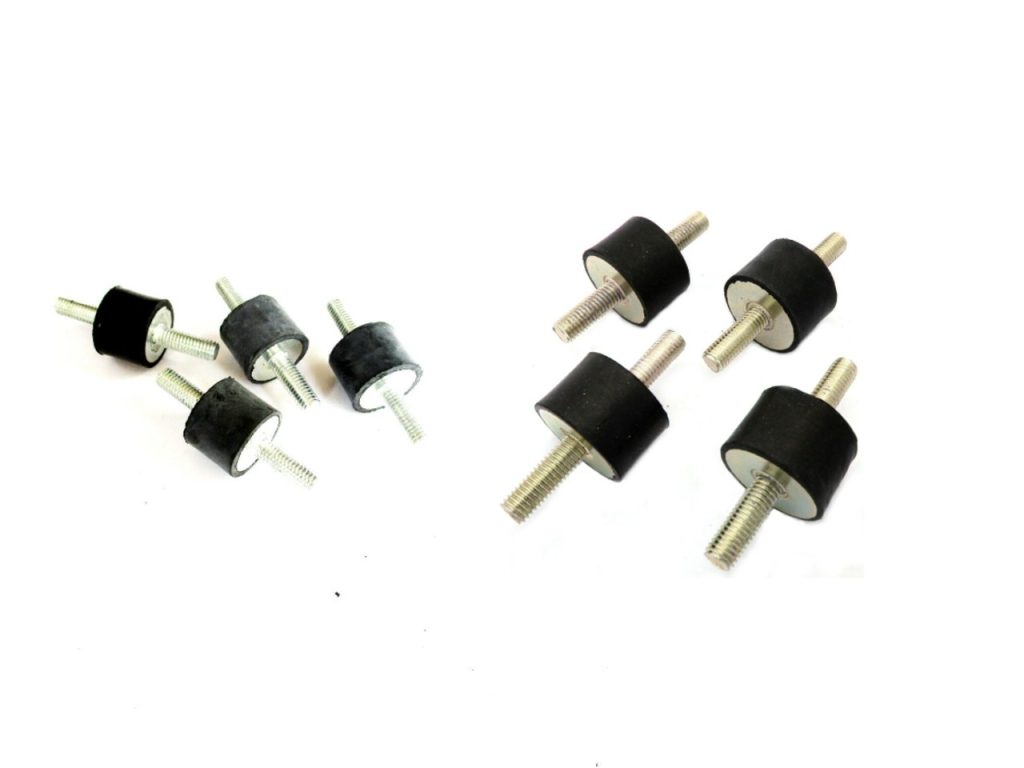

- Range of male male double end anti vibration stud mounts and isolators, simple stable design
- We stock the parts below
- Data Sheet with other sizes available on order
- Ideal for isolating electronics, car replacement parts, pumps, compressors, HVAC, aircon, machines shock noise and vibration isolation
- Shore A 60 Rubber, corrosion resistant metal, made in Europe
- Contact us for quote
- All specifications shown herein are typical values and are not guaranteed. It is recommended to test in application for suitability.

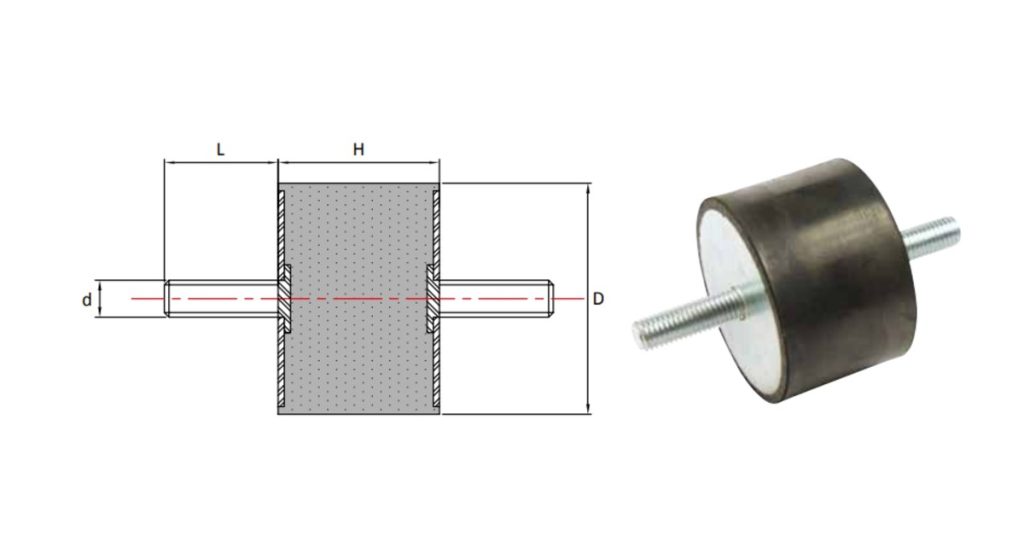

| We stock these parts: | (d) Thread | (D)Diam | (H) Height | (L) Pin Length | Hardness | Load Rating (kg) |
| M388MM | M3 | 8 | 8 | 6/8mm | 60 | 3.5 |
| M41010MM | M4 | 10 | 10 | 6 | 60 | 4 |
| M41012MM | M4 | 10 | 12 | 8 | 60 | n/a |
| M51515MM | M5 | 15 | 15 | 15 | 60 | 11 |
| M62015MM | M6 | 20 | 15 | 18 | 60 | 17.5 |
| M62020MM | M6 | 20 | 20 | 18 | 60 | 13.4 |
| M83015MM | M8 | 30 | 15 | 20 | 60 | 42 |
| M83020MM | M8 | 30 | 20 | 20 | 60 | 39 |
| M104030MM | M10 | 40 | 30 | 23 | 60 | 64 |
| M105025MM | M10 | 50 | 25 | 23 | 60 | 151 |
| M105030MM | M10 | 50 | 30 | 23 | 60 | 129 |
| M126035MM | M12 | 60 | 35 | 37 | 60 | 247 |
This information is for guidance only. Customers are recommended to contact us for further technical information on products and applications.
We reserve the right to alter specifications or withdraw products without notice
All specifications shown herein are typical values and are not guaranteed. It is recommended to test in application for suitability.
