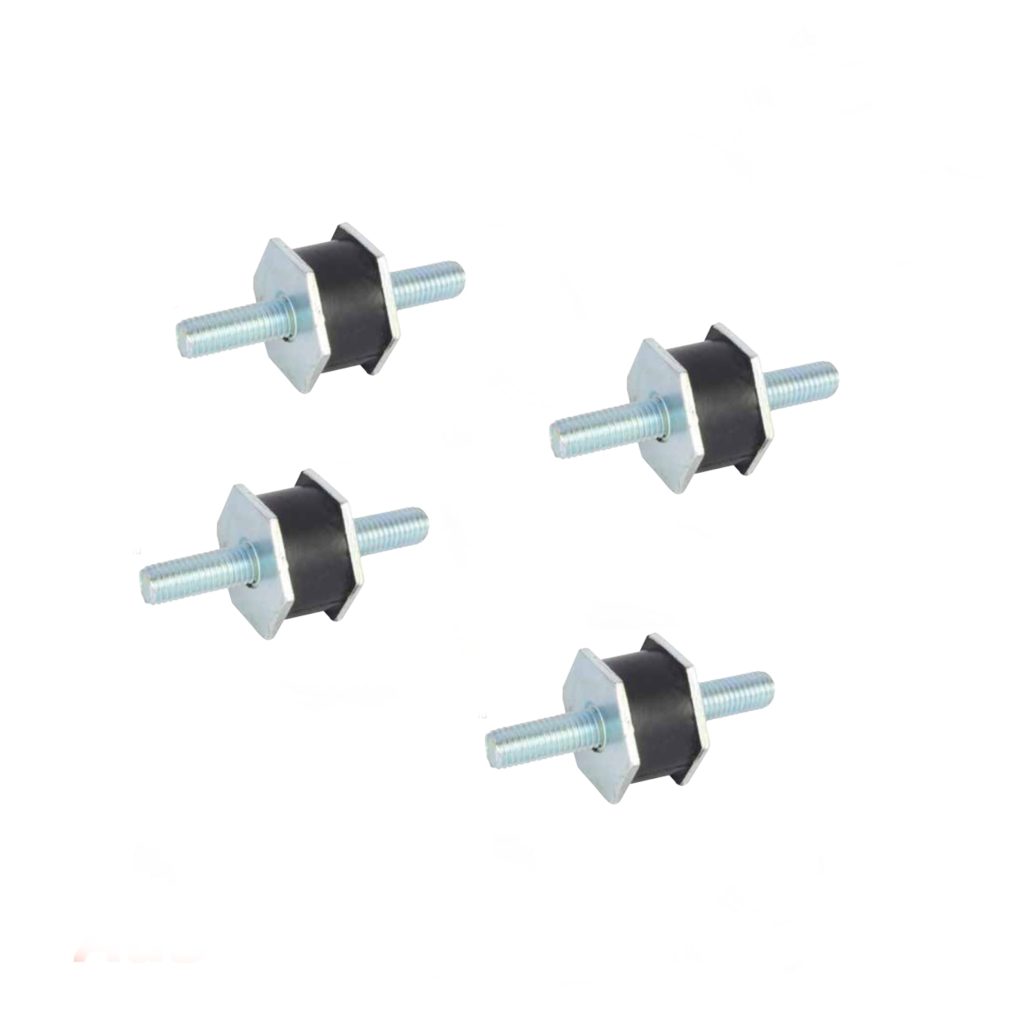

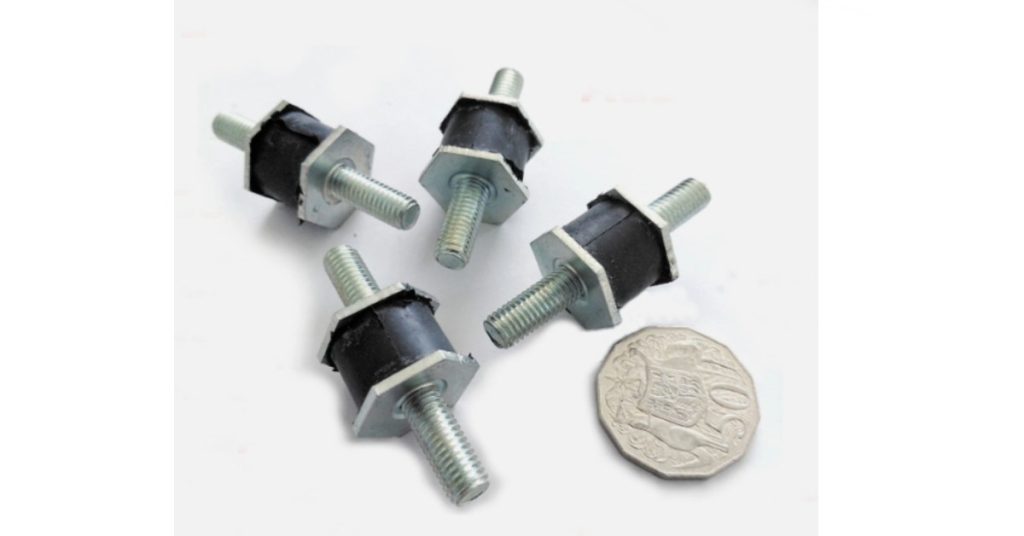

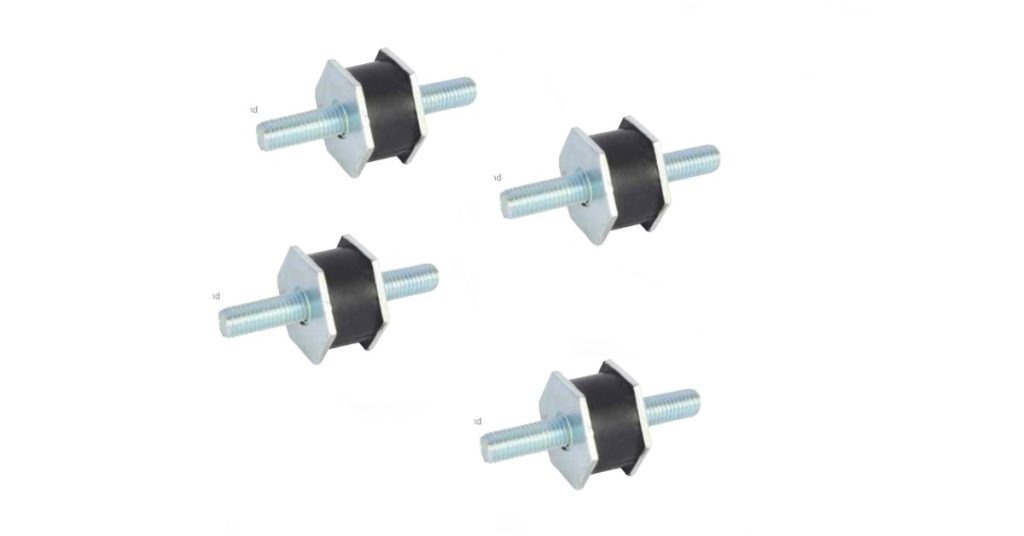

- Made with hex shaped end metals
- Allows a spanner fix to avoid twisting of the rubber during installation
- Mountings can be used in compression, shear or a combination of both.
- Low cost auto replacement part for exhausts, radiators.
- Corrosion resistant metal, made in Europe, made of Shore A rubber
- Buy on Ebay
- Data Sheet for other sizes available
| We stock this Part: | d (thread) | D Diameter | H Height | L Pin Length | Compressive Load / Deflection | Shear Load / Deflection |
| HMM616 | M6 | 16 | 16 | 12 | 8 / 1 | 3.2 / 1.8 |
Dimensions in mm. Maximum compressive Load in Kg. Deflection in mm
This information is for guidance only. Customers are recommended to contact us for further technical information on products and applications.
We reserve the right to alter specifications or withdraw products without notice
All specifications shown herein are typical values and are not guaranteed. It is recommended to test in application for suitability.
