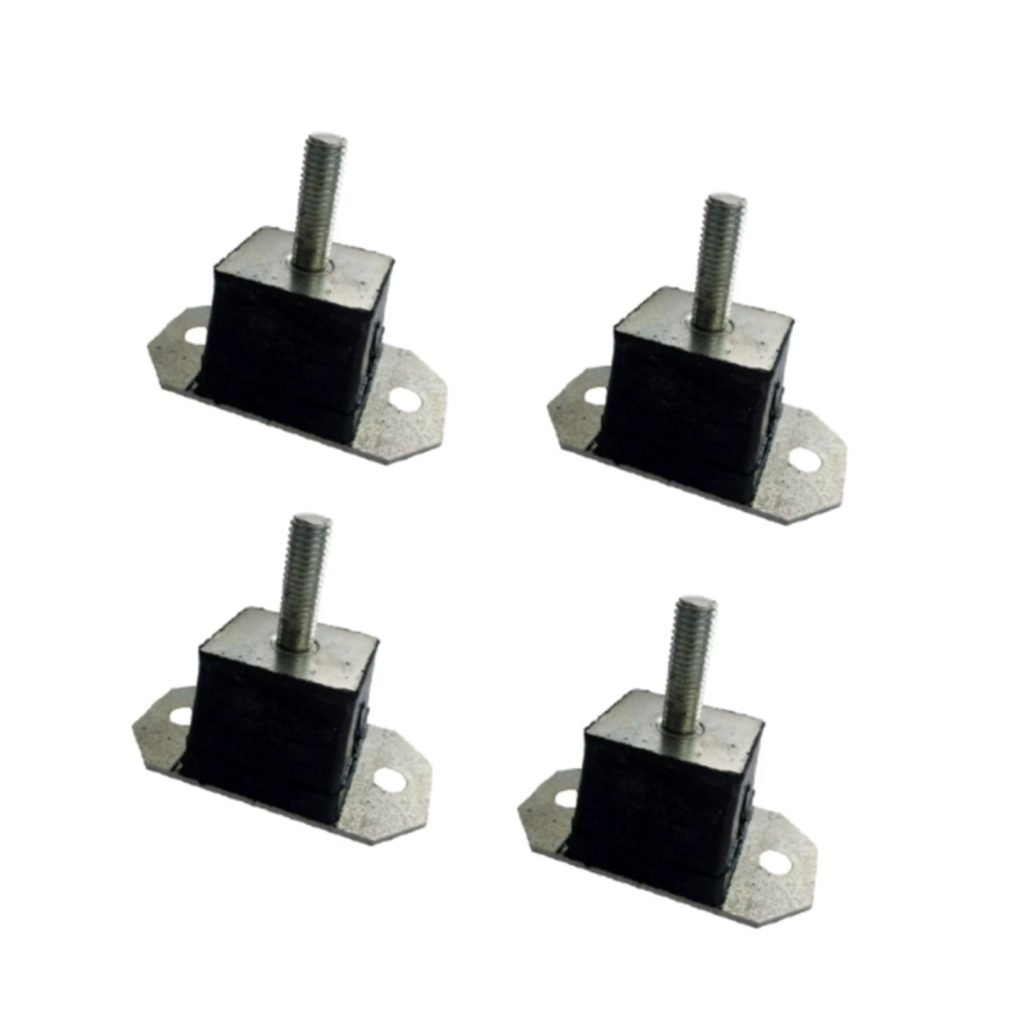

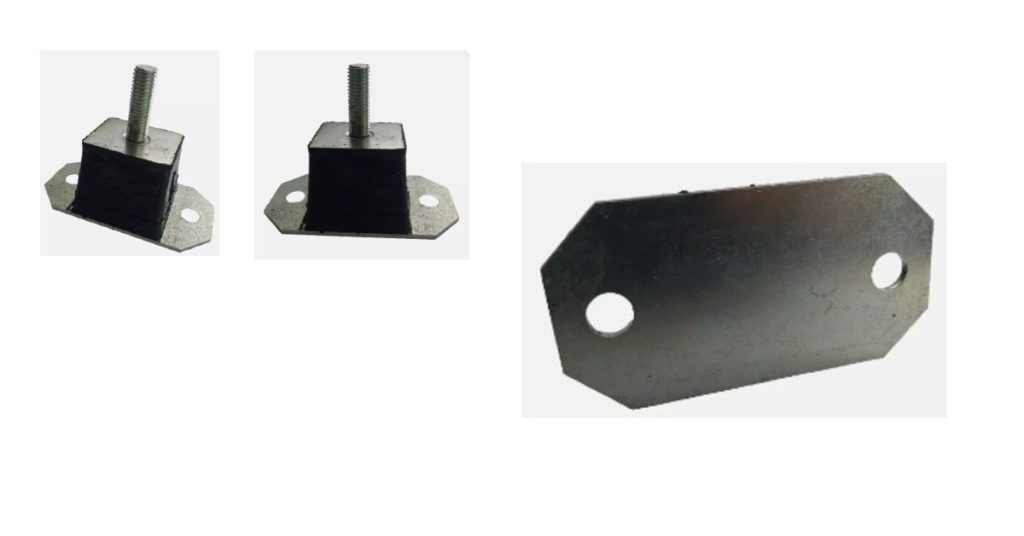

- Anti vibration base plate flange style mounts for Airconditioning and HVAC noise control
- Combines vibration isolation and vibration damping and noise control
- Outperforms rubber for sensitive equipment
- Versatile general purpose mounting
- The circular relief in the rubber section helps provide good levels of vibration attenuation and shock absorption
- Use for machines, pumps, compressors, generators
- 60 Shore A Rubber.
- M12 Thread
- Data Sheet – other sizes available
- Buy on Ebay

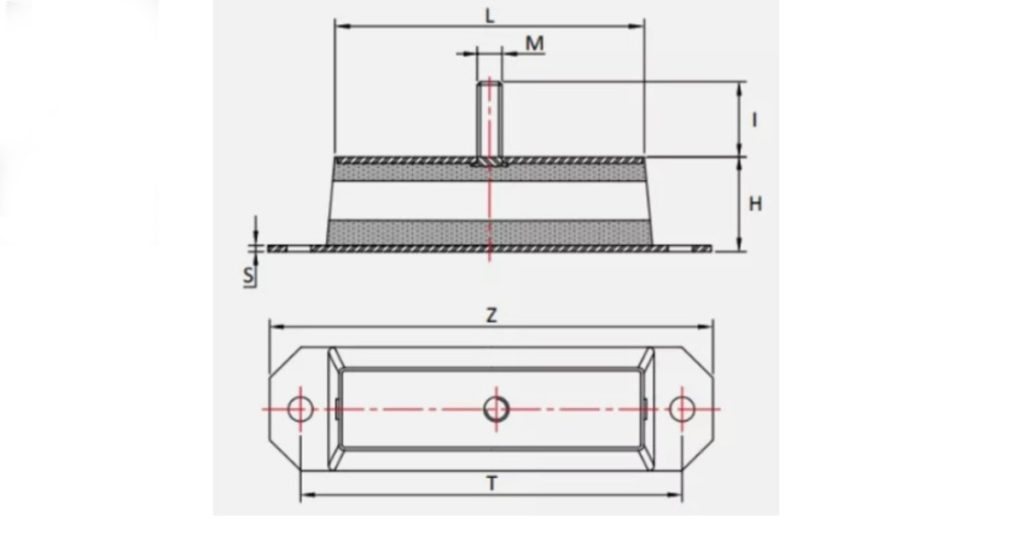

| Part no : | Z (Length) | L (width) | T (length to holes) | H (height) | M x I (thread x length) | E (plate thickness) |
| FMM12115 | 115 | 50 | 85 | 45.7 | M12 x 37 | 3 |
This information is for guidance only. Customers are recommended to contact us for further technical information on products and applications.
We reserve the right to alter specifications or withdraw products without notice
All specifications shown herein are typical values and are not guaranteed. It is recommended to test in application for suitability.
