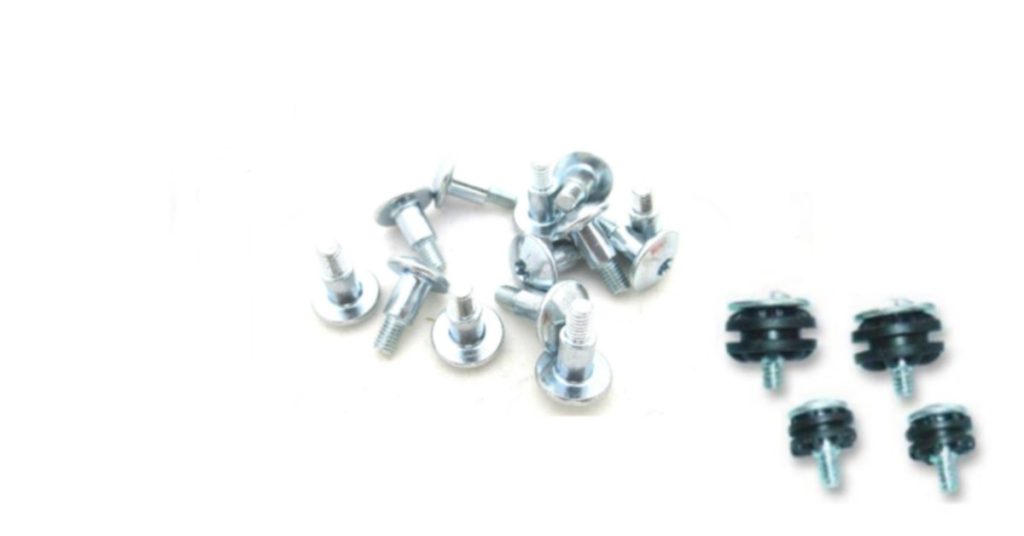

- A one piece-fixing bolt to replace a three-part assembly of screw, washer and tube.
- Shoulder provides optimum compression range of grommets.
- The threads are suitable for screwing directly into a HDD.
- Available in UNC 6-32 or M3 thread.
- Shoulder design reduces compression or drag on grommet
- Prevents over fixing
- Data Sheet

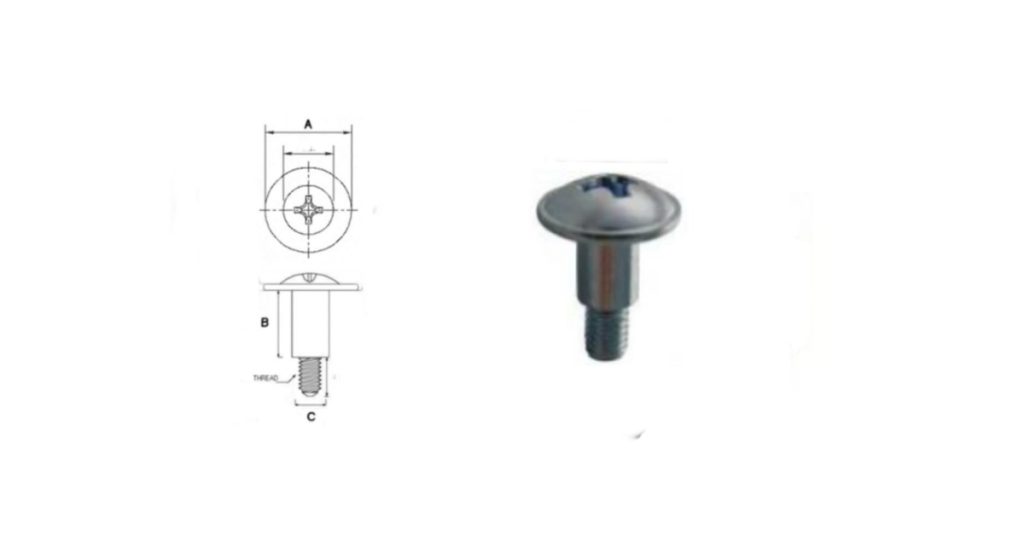

| Part no : | A Head diam. | B x C Shoulder height x diam. | C Shoulder diam. | Thread | Head |
| FBM39P | 9 | 5.61 | 4.14 | M3 | Phillips |
| FB6329TX | 9 | 5.61 | 4.14 | UNC6-32 | Torx10 |
| FBM312P | 12.7 | 7.87 | 4.93 | M3 | Phillips |
| FB63212TX | 12.7 | 7.87 | 4.93 | UNC6-32 | Torx10 |
This information is for guidance only. Customers are recommended to contact us for further technical information on products and applications.
We reserve the right to alter specifications or withdraw products without notice
All specifications shown herein are typical values and are not guaranteed. It is recommended to test in application for suitability.
